| Morocco workshop --Only two anchor bolts per column in the workshop with 5T crane | |||||
| Country | Morocco | Year | 2020 | ||
| Project Information | |||||

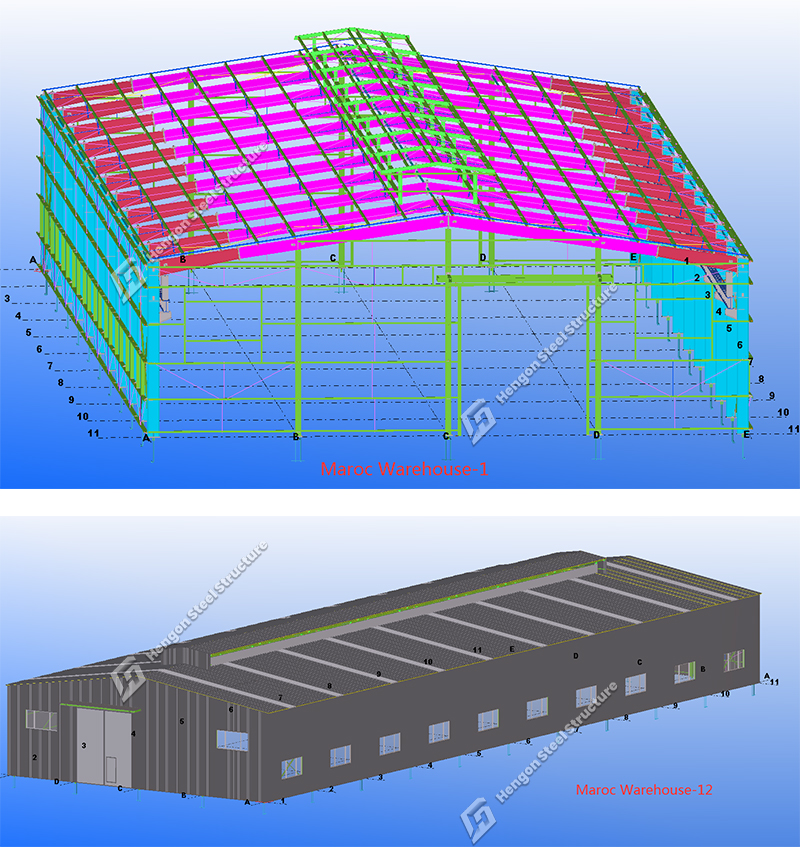

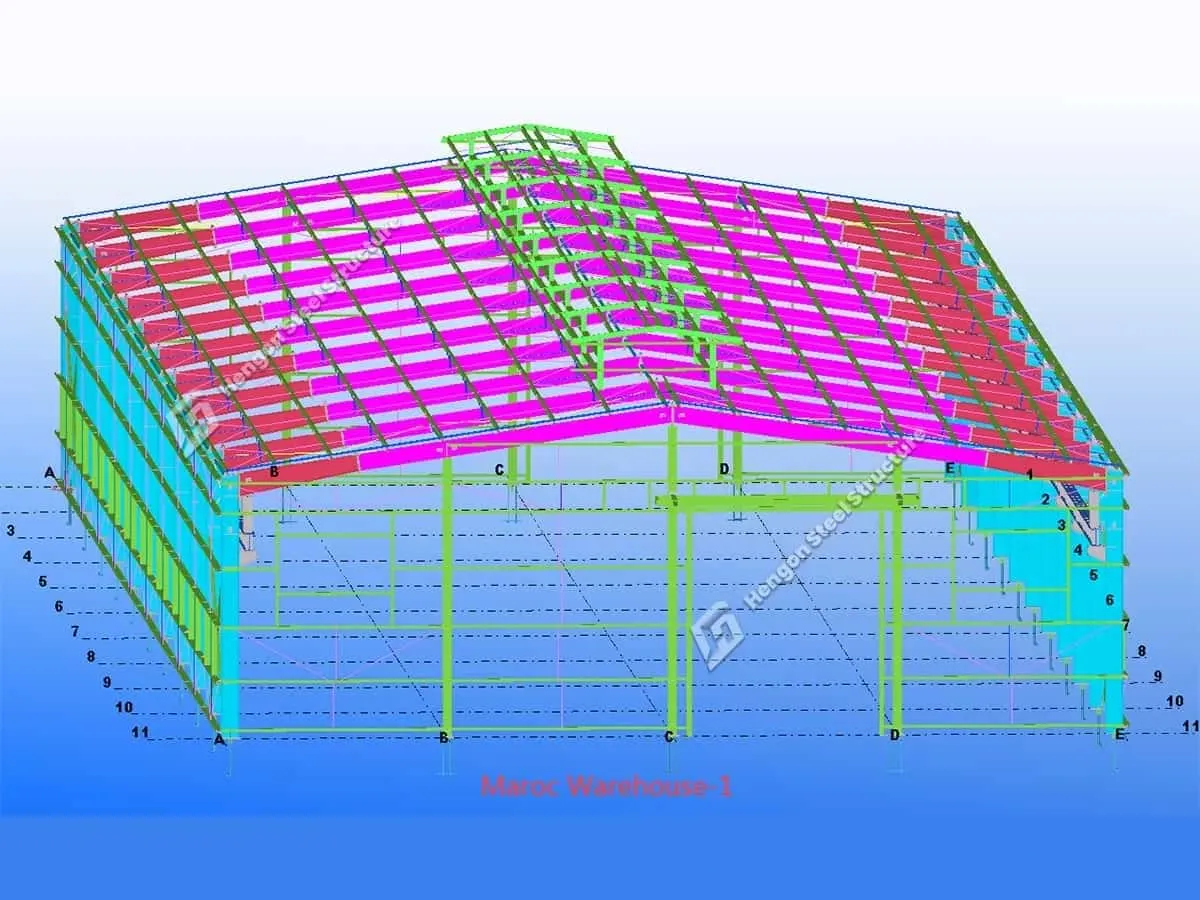

| Project | Steel Structure workshop | Dimension | 70*24*7m（with sky window） | Wind speed | 29m/s |
| Material | H-steel | Paint | Alykd paint | Purline | C purline 160x60x20x2 |
| Roof | EPS sandwich panel (0.47mm+50mm 12kg+0.37mm)+1mm sky light sheet | Wall | PPGI single corrugated sheet V900 0.5mm | Window | Alluminum alloy sliding window, 1mm frame+0.5mm tempered glass 3mx1.5mx24 |
| Door | Sandwich panel sliding door 5mx6mx2 | Containers | 6x40HQ | ||
| |||||
