Since 2019, we have built a strong, long-term partnership with our client, successfully completing multiple prefabricated steel structure projects each year. Thanks to the trust established over the years, both parties have streamlined communication, eliminating many preliminary discussions and inspections. This allows us to focus directly on project details and finalizing drawings, significantly saving time and effort.
| Uruguay Logistics warehouse | |||||
| Country | Uruguay | Year | 2022 | ||
| Project Information | |||||
| Project | Logistics warehouse | Dimension | 172.5m*109.53*8.8m | Wind speed | 31m/s |
| Structure | Prefabricated steel structure | Paint | Alykd paint, 90U | Purline | C purline |
| Brick height | 2m | Wall | Corrugated steel sheets | Sky light sheet | 1.2mm |
| Roofing | V840 0.5mm PPGI corrugated steel roofing sheets +Fiber glass insulation with stainless wire V840 0.5mm | Door | Electricity roller shutter door and steel security door | Gutter | 304 stainless gutter, 1mm |
| Others | Ridge ventilator | Door | Containers | 26x40HQ | |

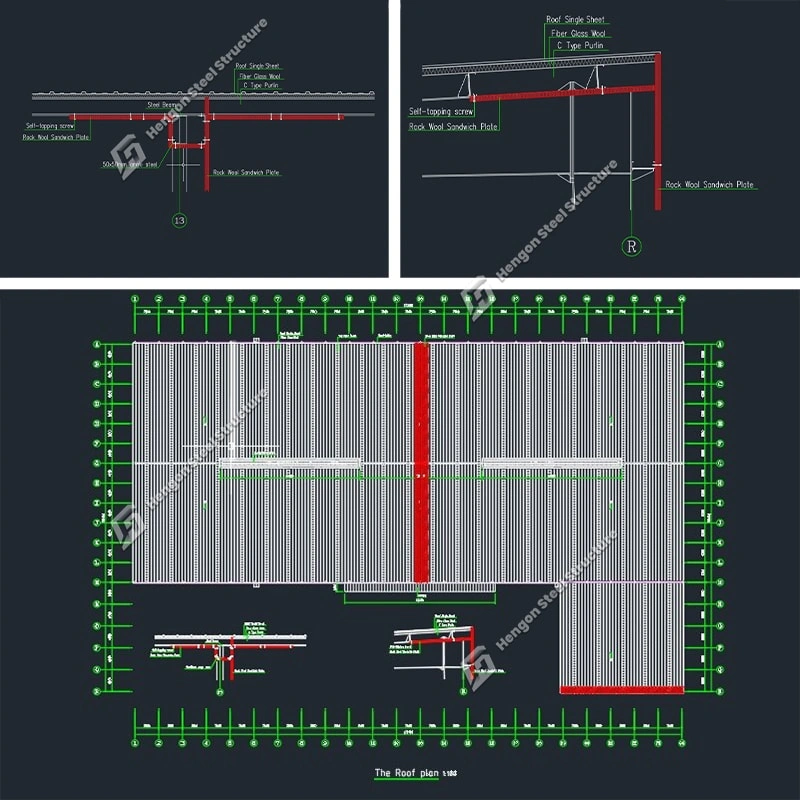

This specific project features a custom-designed firewall partition wall, with an extended design where the wall connects to the roof on both sides to ensure fire safety. According to the client’s architect, this design fully complies with local fire safety standards in Uruguay. The use of 50mm rock wool sandwich panels offers exceptional fire resistance, ensuring the overall safety of the structure.
Additionally, the wall panel color scheme was designed with a contrasting color approach—combining gray and off-white panels—to create a modern, stylish look for the entire warehouse. This design not only meets functional requirements but also enhances the aesthetic appeal of the space.

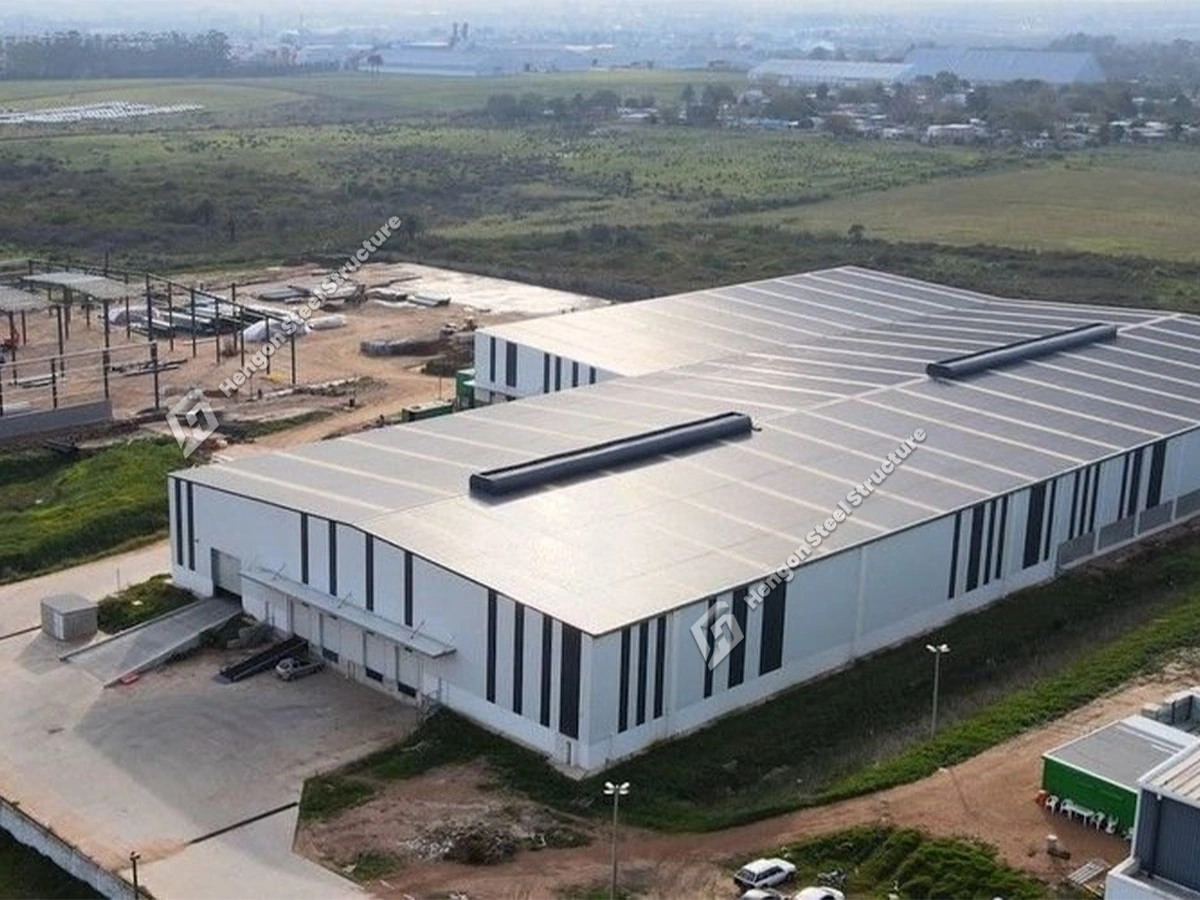

During a recent visit to our factory, this client mentioned that their logistics warehouse is partly for self-use and partly for rental purposes, with plans to expand the logistics warehouse annually. This visit was a preparatory step for larger-scale projects in the future.
Looking back to 2019, this client initially requested a metal roof ridge ventilation. Our engineering team tailored the design to their specifications, and this solution has since been used in several subsequent projects.

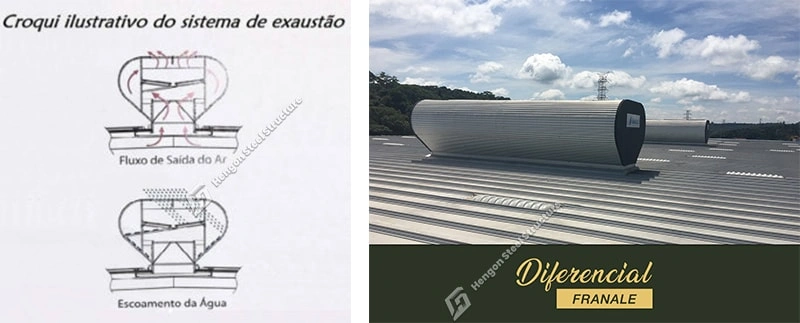

Client`s required metal roof ridge ventilator

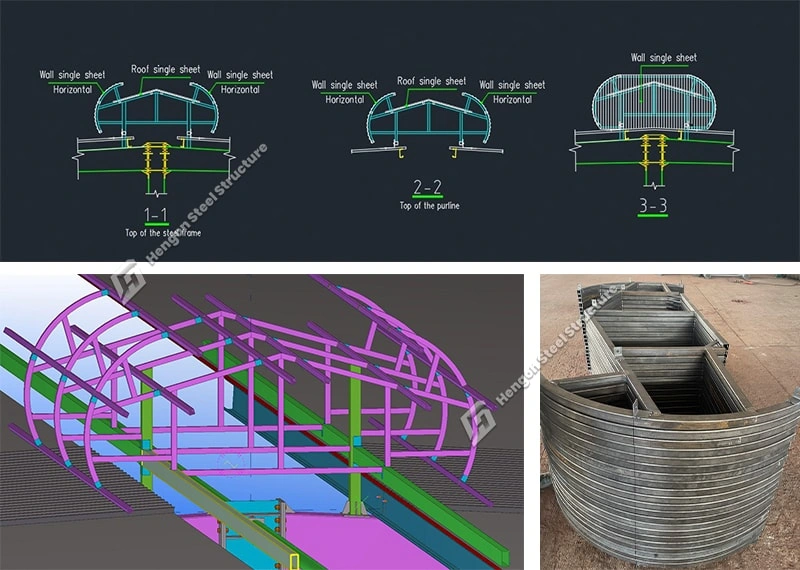

Hengon`s Roof ridge ventilator

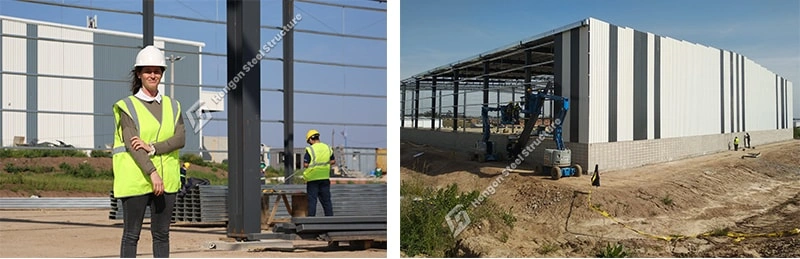

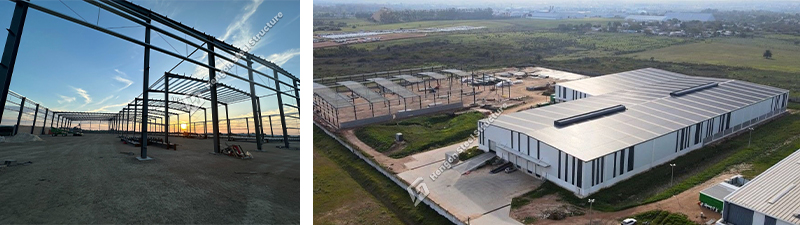

As a leading Chinese manufacturer of prefabricated steel structures, we adhere to the philosophy of "quality first." We are dedicated to providing high-quality products and professional services to ensure the successful implementation of every project. After the completion of this project, this client sent us highly satisfactory feedback photos, further confirming the value of our services.
